Description
Technical Specifications
- Voltage: AC90~240V 50~60HZ±10%
- Power Consumption: 120W
- Laser Source: Solid semi-conductor diode
- Laser Power / Wavelength: Red 1x1000mW (638nm) / Green 1x1000mW (520nm) / Blue 1x2000mW (445nm)
- Beam Size: 4mm at aperture
- Divergence: <1.5mrad-full angle
- Colors: RGB full color
- External Modulation: Analog
- DMX Channel: 19/32CH
- Scanner System: 40kpps

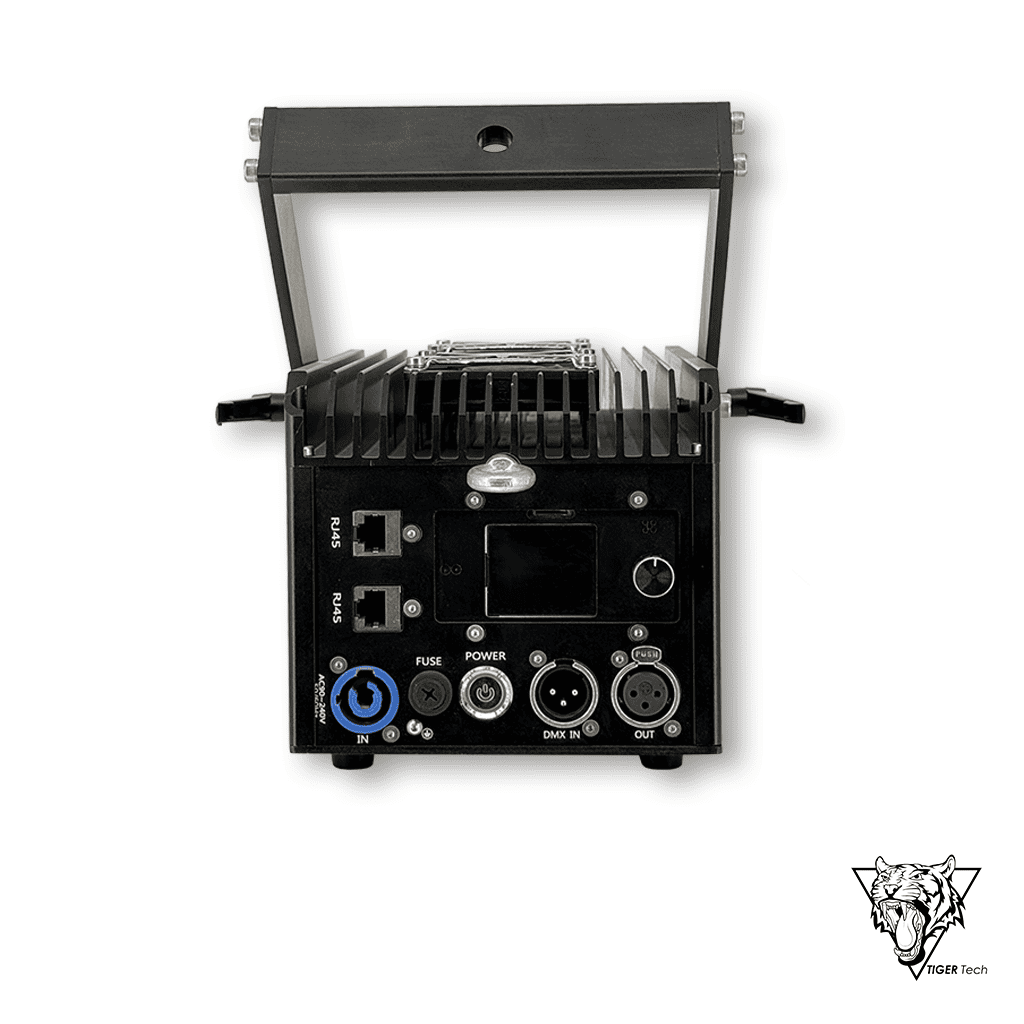

- Control Signal: 3-pin DMX in/out, RJ45 ILDA over cat in/out (can swap display to Pangolin FB4)
- Control Mode: Music, Auto, Master-Slave and DMX-512, ILDA Control
- Cooling System: Forced Air Fan Cooling System
- Operating Environment: Indoor rated (can be used outdoors in dry, dust-free environment)
- Operation Temperature: -10°C～40°C
- Net/Gross Weight: 12 lb / 21 lb
- Fixture Size: 13 x 6″ x 6.5″
- Flight Case Size: 15″ x 12″ x 9″
“
